Product family
Abrasion Resistant Belts
M24, DIN-X and DIN-W for punishing duty.
High tensile, high abrasion covers for sharp and heavy materials. Mines, quarries, crushers and sinter plants.
The covers in this family
What each cover is made to achieve, against the standard.
High abrasion
For sharp, heavy and highly abrasive materials.
Super abrasion
Maximum wear life where abrasion is extreme.
Conveyor positions we supply with this family
Cement
Limestone crusher discharge
EP 630/4 6+2 X
Heavy sharp lumps need a thick M24 top cover.
Steel & Foundry
Iron ore and pellets
EP 630/4 6+2 X
Dense, abrasive ore on long runs.

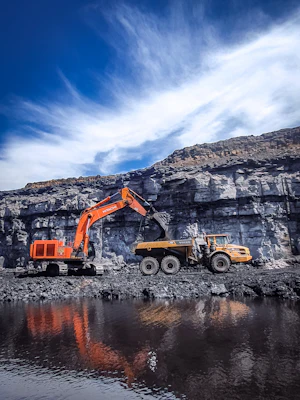

Mining & Quarry
Primary crusher discharge
EP 800/5 8+3 W
The heaviest impact on site, on super abrasion DIN-W.
Mining & Quarry
Overland ore conveyor
EP 1000/5 6+2 X
Long centres need the strength, low stretch EP carcass holds the tension.
Mining & Quarry

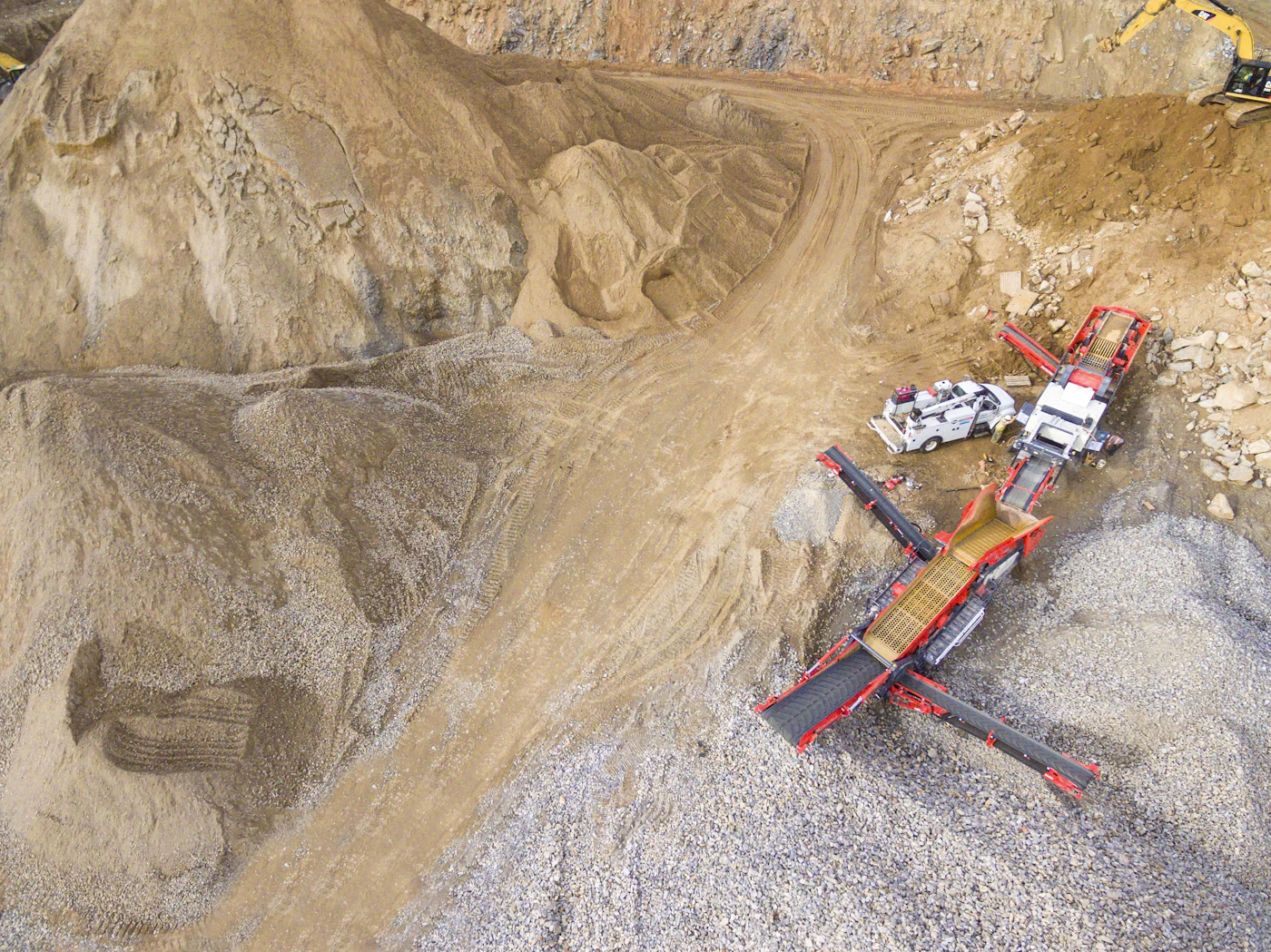

Aggregate stockpile
EP 500/4 5+2 X
Crushed stone and sand, all day.
Fertiliser & Chemical
Phosphate rock
EP 500/4 5+2 X
Abrasive rock on high abrasion covers.
Ports & Logistics
Coal and iron ore yard
EP 1000/5 6+2 X
Long, heavy yard conveyors.
Wood & Paper
Log and chip handling
EP 400/4 5+2 X
Knocks from logs on a thicker top cover.
Every rating and ply count we build
Each cell is a carcass. The number is how many cover and grade options it comes in. Click to open them in the catalogue.
| kN/m | 2 ply | 3 ply | 4 ply | 5 ply | 6 ply |
|---|---|---|---|---|---|
| EP 200 | 8 | ||||
| EP 250 | 8 | 8 | |||
| EP 315 | 8 | 8 | |||
| EP 400 | 32 | 32 | |||
| EP 500 | 32 | 32 | |||
| EP 630 | 32 | 32 | |||
| EP 800 | 32 | 32 | |||
| EP 1000 | 32 | 32 | |||
| EP 1250 | 32 | 32 |
Thickness across the range
From the thinnest to the thickest cover option at each rating, mm
Cover pairs: 1.5+1.5 · 2+1 · 3+1.5 · 4+2 · 5+2 · 6+2 · 6+3 · 8+2 · 8+3 · 10+3 mm
Where most buyers start
Need abrasion resistant belts?
Tell us the material, width and length. A written quotation with a certified datasheet usually goes out the same day.
