Product family
Heat Resistant Belts
T1, T2 and T3 to 150°C.
Heat resistant compounds for clinker, sinter, hot ash and foundry returns. Rated T1 to 100°C, T2 to 125°C and T3 to 150°C.
The covers in this family
What each cover is made to achieve, against the standard.
Heat resistant T1
Hot materials up to 100°C continuous.
Heat resistant T2
Clinker, sinter and hot ash up to 125°C.
Super heat resistant T3
The hottest duties, up to 150°C continuous.
Conveyor positions we supply with this family

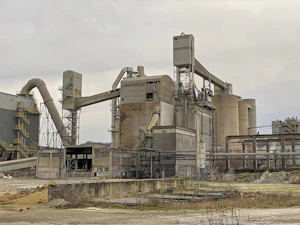

Cement
Clinker to silo
EP 630/4 6+3 T2
Clinker arrives hot. T2 holds to 125°C.

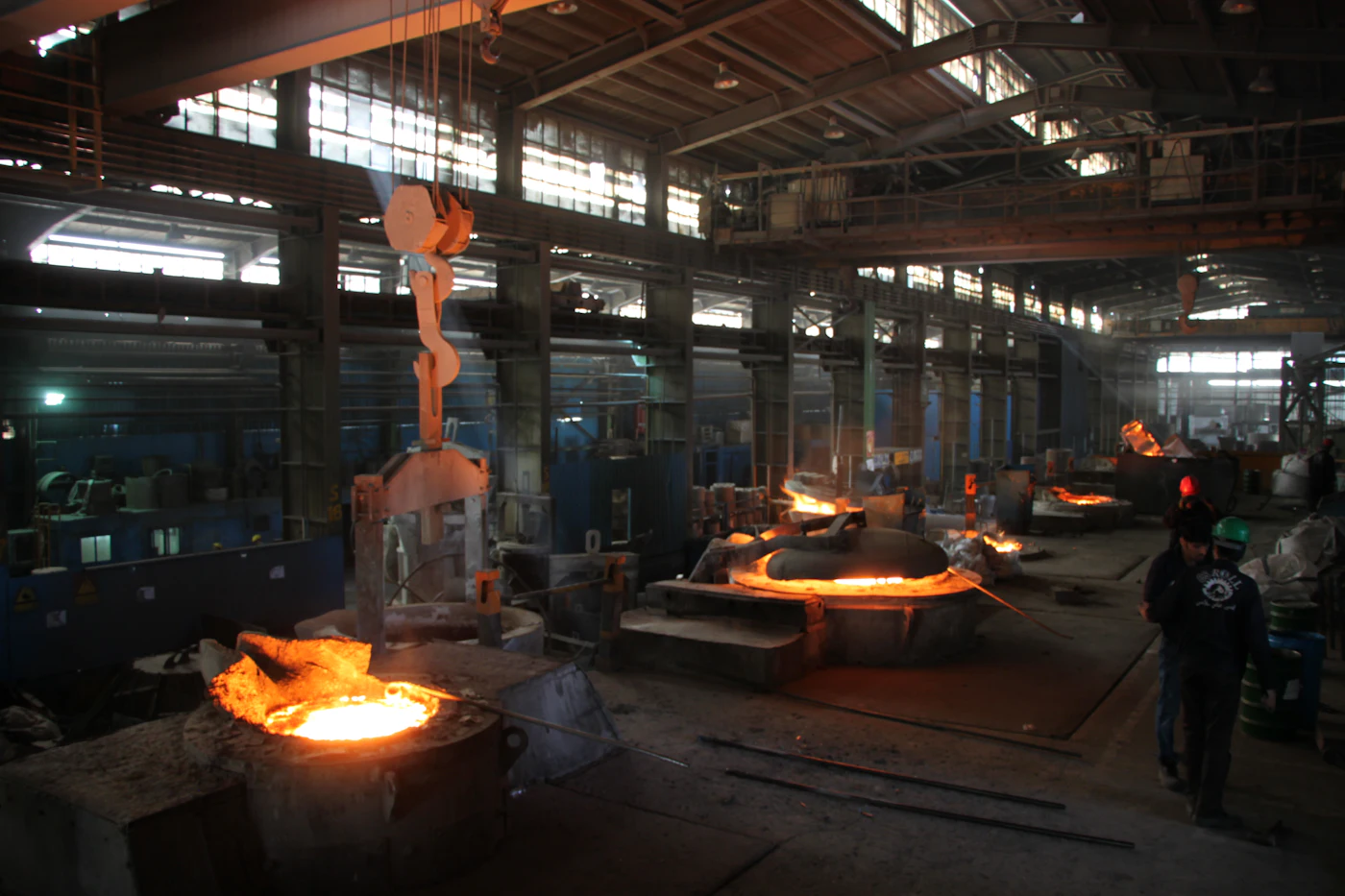

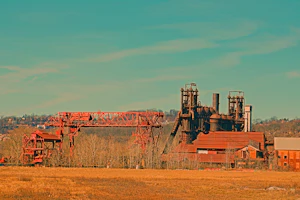

Steel & Foundry
Sinter plant discharge
EP 800/4 8+3 T3
Up to 150°C continuous, with a thick top cover for the lumps.
Steel & Foundry
Hot returns and scrap
EP 500/4 6+2 T2
Warm, uneven material on short transfer belts.

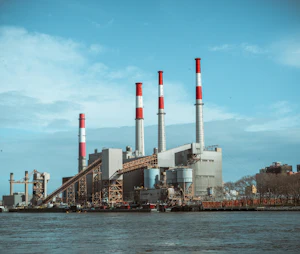

Power & Coal
Bottom ash and fly ash
EP 500/4 4+2 T1
Warm ash with fine abrasion.
Every rating and ply count we build
Each cell is a carcass. The number is how many cover and grade options it comes in. Click to open them in the catalogue.
| kN/m | 2 ply | 3 ply | 4 ply | 5 ply | 6 ply |
|---|---|---|---|---|---|
| EP 200 | 12 | ||||
| EP 250 | 12 | 12 | |||
| EP 315 | 12 | 12 | |||
| EP 400 | 42 | 42 | |||
| EP 500 | 42 | 42 | |||
| EP 630 | 42 | 42 | |||
| EP 800 | 48 | 48 | |||
| EP 1000 | 48 | 48 | |||
| EP 1250 | 48 | 48 |
Thickness across the range
From the thinnest to the thickest cover option at each rating, mm
Cover pairs: 3+1.5 · 4+2 · 5+2 · 6+2 · 6+3 · 8+2 · 8+3 · 10+3 mm
Where most buyers start
Need heat resistant belts?
Tell us the material, width and length. A written quotation with a certified datasheet usually goes out the same day.
